Migrate From Oracle Vault to OpenBao on Akamai Cloud

OpenBao is an open source secrets management tool and fork of HashiCorp Vault that provides teams control over how secrets are stored, encrypted, and accessed. OpenBao can be self-hosted in any environment, including on-premises and across multiple clouds.

Oracle Vault is a part of Oracle Cloud Infrastructure (OCI). It provides a secure, managed solution for storing and controlling access to sensitive information like API keys, passwords, and encryption keys. Oracle Vault is designed to integrate with other Oracle services, supporting features for key management, secret storage, and cryptographic functions.

This guide provides steps and considerations for how to migrate secrets stored in Oracle Vault to OpenBao running on Akamai Cloud.

Before You Begin

1. Follow our Get Started guide to create an Akamai Cloud account if you do not already have one.

2. When migrating from Oracle Vault to OpenBao on Akamai Cloud, OpenBao should be deployed before you begin. OpenBao can be installed on a single Linode instance or deployed to a multi-node cluster using Linode Kubernetes Engine (LKE). Follow the appropriate guide below based on your production needs:

   • Deploying OpenBao on a Linode Instance
   • Deploy OpenBao on Linode Kubernetes Engine
   • Deploying OpenBao through the Linode Marketplace

3. Ensure that you have access to your Oracle Cloud platform account with sufficient permissions to work with Oracle Vault. The OCI CLI must also be installed and configured

4. Install jq, a lightweight command line JSON processor.

Using This Guide

This tutorial contains a number of placeholders that are intended to be replaced by your own unique values. For reference purposes, the table below lists these placeholders, what they represent, and the example values used in this guide:

Review Existing Secrets in Oracle Vault

Before migrating to OpenBao, evaluate how your organization currently uses Oracle Vault.

For example, an application that accesses services from multiple cloud providers might retrieve access keys stored in Oracle Vault. Granting access at runtime ensures that credentials aren’t embedded in code or exposed during deployment.

OpenBao supports equivalent secret injection workflows through AppRole and Kubernetes integration.

Review Secrets Using the Oracle Console

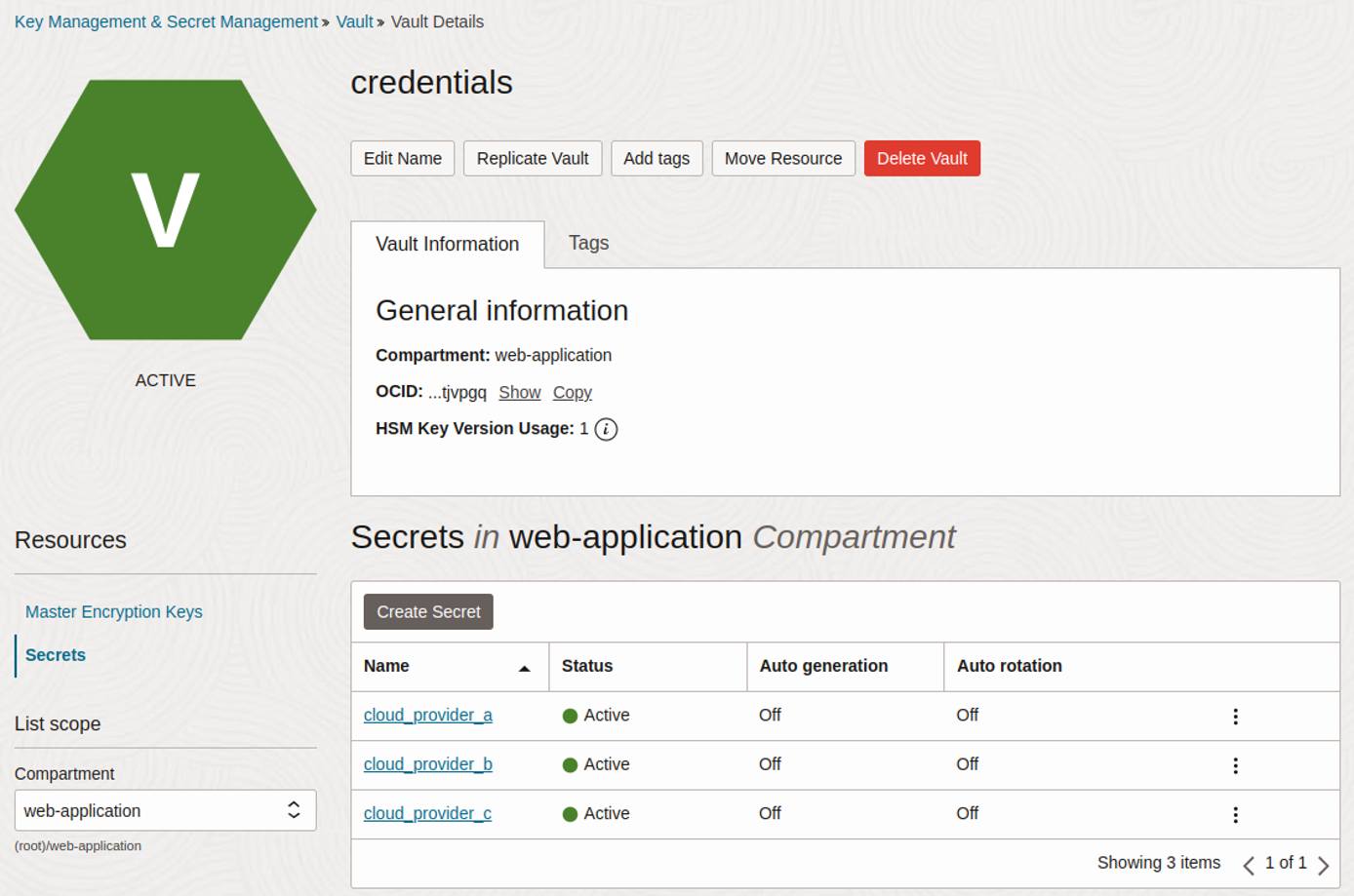

1. Navigate to Security > Vault, select your vault, and open the Secrets tab. The example secrets below are used throughout this guide:

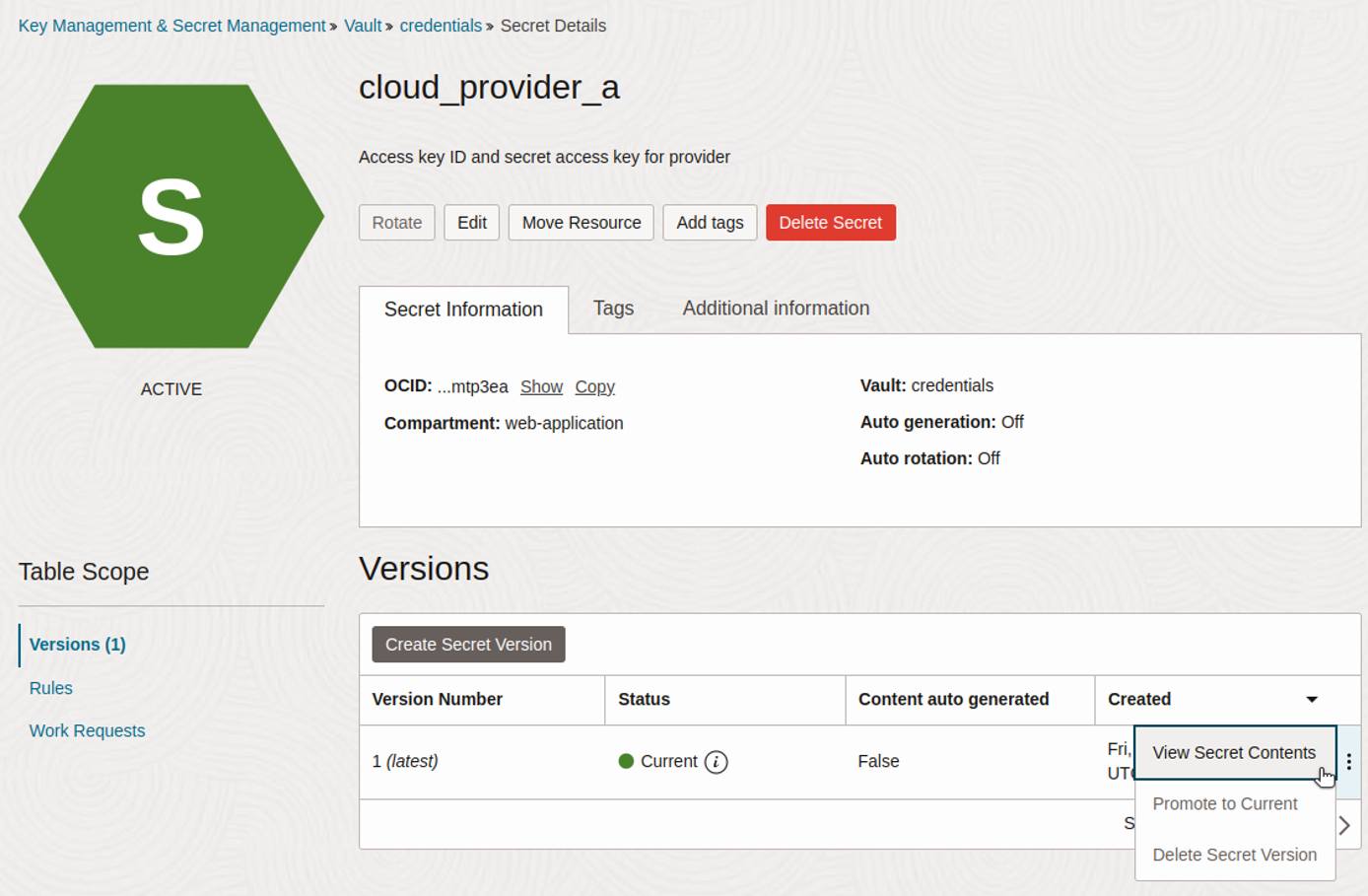

2. To display a secret’s value, select the secret, go to the latest version, and click View Secret Contents:

Review Secrets Using the OCI CLI

You can also use the Oracle Cloud CLI (oci) to manage the secrets in your Oracle Vault.

1. Authenticate with the OCI CLI. You must have configured your API key, tenancy OCID, and user OCID. Run a basic command to confirm authentication:

   oci iam region list

2. Identify the compartment that contains your vault:

   oci iam compartment list --query 'data[]["name","id"]'

   In the example above, the credentials vault belongs to the web-application compartment:

   [
     [
       "web-application", "ocid1.compartment.oc1..aaaaaaaawrrlh7hw6b4tnsbxevyoywscike5ygn4ut5n734mjsclijgpjjgq"
     ]
   ]

3. List the secrets in your vault by specifying the OCI_COMPARTMENT_ID (e.g. ocid1.compartment.oc1..aaaaaaaawrrlh7hw6b4tnsbxevyoywscike5ygn4ut5n734mjsclijgpjjgq):

   oci vault secret list \
     --compartment-id OCI_COMPARTMENT_ID \
     --query 'data[].["secret-name","description","id"]'

   For Example:

   oci vault secret list \
     --compartment-id ocid1.compartment.oc1..aaaaaaaawrrlh7hw6b4tnsbxevyoywscike5ygn4ut5n734mjsclijgpjjgq \
     --query 'data[].["secret-name","description","id"]'

   [
     [
       "cloud_provider_a",
       "Access key ID and secret access key for provider",
   "ocid1.vaultsecret.oc1.phx.amaaaaaaogvqnkqaepiqln7ztj43ugit75w3wl7kyzldk3rbqkfd2zmtp3ea"
     ],
     [
       "cloud_provider_b",
       "Project ID and project API KEY",
   "ocid1.vaultsecret.oc1.phx.amaaaaaaogvqnkqacnhdzfprgd4f4ml7rpkjqmqlyz7p5kjjfinvyn57qdoa"
     ],
     [
       "cloud_provider_c",
       "Client ID and client secret",
   "ocid1.vaultsecret.oc1.phx.amaaaaaaogvqnkqavn32ibazaqinya5bv3eyc4ndfvebcnksnqk4vl74xqqa"
     ]
   ]

4. Retrieve the value of a secret by specifying its OCI_SECRET_ID (e.g. ocid1.vaultsecret.oc1.phx.amaaaaaaogvqnkqaepiqln7ztj43ugit75w3wl7kyzldk3rbqkfd2zmtp3ea):

   oci secrets secret-bundle get \
     --secret-id OCI_SECRET_ID \
     --stage CURRENT \
     --query 'data."secret-bundle-content"'

   For Example:

   oci secrets secret-bundle get \
     --secret-id ocid1.vaultsecret.oc1.phx.amaaaaaaogvqnkqaepiqln7ztj43ugit75w3wl7kyzldk3rbqkfd2zmtp3ea \
     --stage CURRENT \
     --query 'data."secret-bundle-content"'

   {
     "content":
   "eyAiYWNjZXNzX2tleV9pZCIgOiAiQUtJQTUxM0oyRERSQVhDRktYRjUiLCAic2VjcmV0X2FjY2Vzc19rZXkiIDoiWGRxRDBCUGE4YUxGYU4rRUk4U0FZbTlVNFpZZVhRZE1HQUlqS0QveCIgfQ==",
     "content-type": "BASE64"
   }

5. If the secret bundle content-type is BASE64 (e.g. eyAiYWNjZXNzX2tleV9pZCIgOiAiQUtJQTUxM0oyRERSQVhDRktYRjUiLCAic2VjcmV0X2FjY2Vzc19rZXkiIDoiWGRxRDBCUGE4YUxGYU4rRUk4U0FZbTlVNFpZZVhRZE1HQUlqS0QveCIgfQ==), you must decode it to reveal the original value:

   echo OCI_ENCODED_SECRET \
     | base64 --decode

   For Example:

   echo eyAiYWNjZXNzX2tleV9pZCIgOiAiQUtJQTUxM0oyRERSQVhDRktYRjUiLCAic2VjcmV0X2FjY2Vzc19rZXkiIDoiWGRxRDBCUGE4YUxGYU4rRUk4U0FZbTlVNFpZZVhRZE1HQUlqS0QveCIgfQ== \
     | base64 --decode

   { "access_key_id": "AKIA513J2DDRAXCFKXF5", "secret_access_key": "XdqD0BPa8aLFaN+EI8SAYm9U4ZYeXQdMGAIjKD/x" }

   Tip: Using a Single Command

   You can also retrieve and decode the secret in a single command:

   oci secrets secret-bundle get \
     --secret-id OCI_SECRET_ID \
     --stage CURRENT \
     --query 'data."secret-bundle-content".content' \
     --raw-output \
     | base64 --decode

Access Your OpenBao Deployment on Akamai Cloud

The following steps focus on migrating secrets into your OpenBao deployment on Akamai Cloud. You should already have a running OpenBao instance on either a standalone Linode instance, in an LKE cluster, or deployed via the Linode Marketplace.

If your OpenBao environment is not yet ready, refer to the appropriate deployment guide listed in the Before You Begin section and complete the setup.

Once deployed, log into your OpenBao environment. Before continuing, verify that:

• OpenBao is successfully initialized.
• The vault is unsealed.
• The BAO_ADDR environment variable is set.
• You are authenticated using the root token.

Create a Policy and AppRole

To replicate Oracle IAM-style access control in OpenBao, use AppRoles. While Oracle Vault manages permissions through IAM policies instead of granular roles, OpenBao allows you to assign access through policy-bound AppRoles.

Follow these steps to create an OpenBao AppRole that mirrors the access controls used in Oracle IAM.

Enable AppRole

1. Enable the AppRole authentication method:

   bao auth enable approle

   Success! Enabled approle auth method at: approle/

Create a Policy

2. Using a text editor like nano, create a new .hcl policy file in /etc/openbao, replacing POLICY_FILE (e.g. cloud-credentials-policy.hcl) with a policy filename of your choosing:

   sudo nano /etc/openbao/POLICY_FILE

   For Example:

   sudo nano /etc/openbao/cloud-credentials-policy.hcl

3. Give the file the following contents, replacing SECRET_MOUNT_PATH (e.g. cloud-credentials) with your chosen mount path:

   File: POLICY_FILE.hcl

   1 2 3

   path "SECRET_MOUNT_PATH/*" { capabilities = ["read"] }

   For Example:

   File: cloud-credentials-policy.hcl

   1 2 3

   path "cloud-credentials/*" { capabilities = ["read"] }

   This policy grants read access to any secrets within the specified mount path.

   When done, press CTRL+X, followed by Y then Enter to save the file and exit nano.

4. Add the policy to OpenBao, replacing POLICY_NAME (e.g. cloud-credentials-policy) and POLICY_FILE:

   bao policy write POLICY_NAME /etc/openbao/POLICY_FILE

   For Example:

   bao policy write cloud-credentials-policy /etc/openbao/cloud-credentials-policy.hcl

   Success! Uploaded policy: cloud-credentials-policy

Create an AppRole

5. Create an AppRole for the application that needs access to the secret, replacing APPROLE_NAME (e.g. cloud-credential-reader-approle) and POLICY_NAME:

   bao write \
       auth/approle/role/APPROLE_NAME \
       token_policies=POLICY_NAME

   For Example:

   bao write \
       auth/approle/role/cloud-credential-reader-approle \
       token_policies=cloud-credentials-policy

   Success! Data written to: auth/approle/role/cloud-credential-reader-approle

6. Verify that the AppRole was written successfully, replacing APPROLE_NAME:

   bao read auth/approle/role/APPROLE_NAME

   For Example:

   bao read auth/approle/role/cloud-credential-reader-approle

   Key                        Value
   ---                        -----
   bind_secret_id             true
   local_secret_ids           false
   secret_id_bound_cidrs      <nil>
   secret_id_num_uses         0
   secret_id_ttl              0s
   token_bound_cidrs          []
   token_explicit_max_ttl     0s
   token_max_ttl              0s
   token_no_default_policy    false
   token_num_uses             0
   token_period               0s
   token_policies             [cloud-credentials-secrets-policy]
   token_strictly_bind_ip     false
   token_ttl                  0s
   token_type                 default

7. Fetch the AppRole ID, replacing APPROLE_NAME:

   bao read auth/approle/role/APPROLE_NAME/role-id

   For Example:

   bao read auth/approle/role/cloud-credential-reader-approle/role-id

   Key        Value
   ---        -----
   role_id    c8663988-136f-42de-af40-1dfb94f0c1f6

Generate a Secret ID

8. Generate a secret ID for the role, replacing APPROLE_NAME:

   bao write -f auth/approle/role/APPROLE_NAME/secret-id

   For Example:

   bao write -f auth/approle/role/cloud-credential-reader-approle/secret-id

   Key                   Value
   ---                   -----
   secret_id             9b9c27a3-dc27-4eea-921f-773164ec17c7
   secret_id_accessor    20abfad4-029f-45e8-a749-ecc041ff3554
   secret_id_num_uses    0
   secret_id_ttl         0s

Generate an API Token

9. Generate an API token for the AppRole, supplying the APPROLE_ID (e.g. c8663988-136f-42de-af40-1dfb94f0c1f6) and APPROLE_SECRET_ID (e.g. 9b9c27a3-dc27-4eea-921f-773164ec17c7) from the previous commands:

   bao write auth/approle/login \
     role_id="APPROLE_ID" \
     secret_id="APPROLE_SECRET_ID"

   For Example:

   bao write auth/approle/login \
     role_id="c8663988-136f-42de-af40-1dfb94f0c1f6" \
     secret_id="9b9c27a3-dc27-4eea-921f-773164ec17c7"

   Key                     Value
   ---                     -----
   token                   s.Q9n7KPnLKSDoYnVdrHnphEml
   token_accessor          LkSCfmBQVCfL8s2eX4EfnqO4
   token_duration          768h
   token_renewable         true
   token_policies          ["cloud-credentials-secrets-policy" "default"]
   identity_policies       []
   policies                ["cloud-credentials-secrets-policy" "default"]
   token_meta_role_name    cloud-credential-reader-approle

   The resulting AppRole token (e.g. s.Q9n7KPnLKSDoYnVdrHnphEml) can be used by a user, machine, or service (e.g. an infrastructure management application) to authenticate OpenBao API calls and read the cloud provider credentials secrets.

Storing Secrets

Create the secret store defined in the policy created above.

1. Enable the KV secrets engine, replacing SECRET_MOUNT_PATH:

   bao secrets enable --path=SECRET_MOUNT_PATH kv

   For Example:

   bao secrets enable --path=cloud-credentials kv

   Success! Enabled the kv secrets engine at: cloud-credentials/

2. The example secret from Oracle Vault contains multiple fields stored within a single JSON object. To mirror this format in OpenBao, store the entire SECRET_VALUE (e.g. { "access_key_id": "AKIA513J2DDRAXCFKXF5", "secret_access_key": "XdqD0BPa8aLFaN+EI8SAYm9U4ZYeXQdMGAIjKD/x" }) in a single SECRET_KEY (e.g. secret) in the SECRET_MOUNT_PATH under the secret name SECRET_NAME (e.g. provider-a):

   bao kv put --mount=SECRET_MOUNT_PATH SECRET_NAME \
     "SECRET_KEY"="SECRET_VALUE"

   For Example:

   bao kv put --mount=cloud-credentials provider-a \
     "secret"="{ "access_key_id": "AKIA513J2DDRAXCFKXF5", "secret_access_key": "XdqD0BPa8aLFaN+EI8SAYm9U4ZYeXQdMGAIjKD/x" }"

   Success! Data written to: cloud-credentials/provider-a

Retrieving Secrets

1. While authenticated with the root token, retrieve the secret using the OpenBao CLI (bao), replacing SECRET_MOUNT_PATH and SECRET_NAME:

   bao kv get --mount=SECRET_MOUNT_PATH SECRET_NAME

   For Example:

   bao kv get --mount=cloud-credentials provider-a

   ====== Data ======
   Key                 Value
   ---                 -----
   access_key_id       AKIA513J2DDRAXCFKXF5
   secret_access_key   XdqD0BPa8aLFaN+EI8SAYm9U4ZYeXQdMGAIjKD/x

2. Test access using the APPROLE_TOKEN (e.g. s.36Yb3ijEOJbifprhdEiFtPhR) saved earlier, your SECRET_MOUNT_PATH, and the SECRET_NAME:

   curl --header "X-Vault-Token: APPROLE_TOKEN" \
        --request GET \
        $BAO_ADDR/v1/SECRET_MOUNT_PATH/SECRET_NAME \
        | jq

   For Example:

   curl --header "X-Vault-Token: s.36Yb3ijEOJbifprhdEiFtPhR" \
        --request GET \
        $BAO_ADDR/v1/cloud-credentials/provider-a \
        | jq

   {
     "request_id": "92c5026e-bb14-4e2a-8d70-e94fb005183f",
     "lease_id": "",
     "renewable": false,
     "lease_duration": 2764800,
     "data": {
       "access_key_id": "AKIA513J2DDRAXCFKXF5",
       "secret_access_key": "XdqD0BPa8aLFaN+EI8SAYm9U4ZYeXQdMGAIjKD/x"
     },
     "wrap_info": null,
     "warnings": null,
     "auth": null
   }

   The AppRole token can be used by applications or services to retrieve secrets through the OpenBao API.

   Note

   According to the OpenBao API documentation, OpenBao is API-compatible with HashiCorp Vault. This means most Vault client libraries should also work with OpenBao, including:

   • Go
   • Ruby
   • C#
   • Java
   • Kotlin
   • Node.js
   • PHP
   • Python

Production Considerations

When migrating workloads from Oracle Vault across providers to OpenBao on Akamai Cloud, it’s important to ensure your deployment is secure, resilient, and optimized for performance. This section covers key security and high availability considerations to help you maintain a reliable and protected secrets management system.

Security

Security should be a top priority for a production-grade OpenBao deployment. Protecting secrets from unauthorized access, ensuring secure communication, and enforcing strict access controls are essential to maintaining a secure environment.

• Access Control Policies: Use OpenBao’s policy system to enforce RBAC. Define granular policies that grant only the necessary permissions, following the principle of least privilege.
• Audit Logging: Enable detailed audit logs to track all access and modifications to secrets. OpenBao supports multiple logging backends, such as syslog and file-based logs, to help monitor suspicious activity.
• Secrets Lifecycle Management: Implement automated secrets rotation, revocation, and expiration to ensure secrets do not become stale or overexposed. Consider using dynamic secrets where possible to generate time-limited credentials.
• Securing Network Communication: Configure OpenBao to use TLS to encrypt all communications, ensuring data in transit remains secure. Regularly rotate TLS certificates to prevent expiration-related outages and reduce the risk of compromised certificates.

High Availability

Production-grade OpenBao environments should be deployed with fault tolerance and scalability in mind. OpenBao’s Autopilot mode for high availability ensures that if the active node fails, the cluster automatically elects a new leader, maintaining uptime without manual intervention. However, to enable seamless failover, organizations must configure their deployment correctly, and proactively monitor system health.

• Raft Storage Backend: Use OpenBao’s integrated storage, based on the Raft protocol, to enable distributed data replication across multiple nodes. This ensures data consistency and fault tolerance while reducing reliance on external storage backends. Configure regular Raft snapshots for disaster recovery.
• Deploy Multiple Nodes: OpenBao recommends at least five nodes for a high-availability deployment. The active node handles all requests, while standby nodes remain ready to take over in case of failure.
• Monitor Leader Status: Use bao operator raft list-peers to check the cluster’s leader and node statuses. This command helps ensure that standby nodes are correctly registered and ready for failover.

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.

• Oracle Vault Documentation
• Oracle oci CLI Documentation
• OpenBao Configuration Documentation
• OpenBao Integrated Storage
• OpenBao GitHub
